Question 1

What is magnetic flux and how does it relate to inductance?

Accepted Answer

Magnetic flux is the amount of magnetic field passing through an area. For a uniform magnetic field perpendicular to an area, flux equals the product of field strength and area. According to Faraday's law, changing magnetic flux through a wire loop generates an electromotive force (EMF). This relationship is fundamental to inductance, where inductors store magnetic energy by responding to flux changes.

Question 2

How does Faraday's law explain the induced electromotive force in a coil?

Accepted Answer

Faraday's law states that a changing magnetic flux in a wire loop generates an EMF equal to the negative rate of change of flux over time. The negative sign indicates that if flux decreases, the EMF is positive; if flux increases, the EMF is negative. This induced EMF drives current through the loop, creating a magnetic field that opposes the original flux change, a principle called Lenz's law.

Question 3

What is the Right Hand Rule and why is it important in inductance?

Accepted Answer

The Right Hand Rule determines the direction of a magnetic field created by current in a loop. Curl your right hand's fingers around the current direction; your thumb points in the direction of the generated magnetic field. This rule is essential in inductance because the induced current must flow in a direction that creates a magnetic field opposing the external field's change, as required by Lenz's law.

Question 4

How does self-inductance differ from mutual inductance in circuits?

Accepted Answer

Self-inductance occurs when a changing current in a coil induces a voltage across its own terminals, opposing the current change. Mutual inductance occurs between two separate coils, where current changes in one coil induce voltage in another nearby coil through magnetic coupling. Both phenomena demonstrate electromagnetic induction but operate on different circuit configurations and are key components in resistor inductor and inductor capacitor circuits.

Question 5

What happens when you move a magnet into and out of a solenoid?

Accepted Answer

Moving a magnet into a solenoid increases magnetic flux, inducing a negative EMF that drives current in one direction. Removing the magnet decreases flux, inducing a positive EMF that drives current in the opposite direction. The speed of movement affects the rate of flux change; faster motion induces larger currents and greater ammeter deflections than slower motion.

Question 6

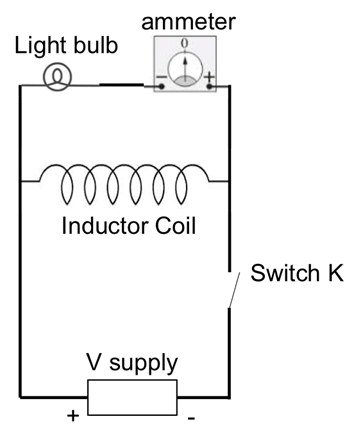

Why does a light bulb briefly brighten when an inductor circuit is switched off?

Accepted Answer

When a switch opens, current through the inductor decreases, causing a change in magnetic flux. This changing flux induces a transient current that opposes the decrease by flowing in the same direction as the original current. This induced current flows through the light bulb, causing it to brighten briefly while the ammeter registers a positive current reading.

Question 7

How do transformers and induction motors use electromagnetic induction?

Accepted Answer

Transformers use mutual induction: voltage in a primary coil creates current and magnetic flux that couples to a secondary coil, inducing voltage without physical contact. Induction motors use a rotating magnetic field from three-phase AC power to induce current in rotor bars, creating an induced rotor magnetic field. The interaction between stator and rotor fields produces force, causing the rotor to follow the rotating magnetic field.
