Question 1

What is the vapor compression cycle and how does it work?

Accepted Answer

The vapor compression cycle is a thermodynamic process that removes heat from a cold reservoir and deposits it in a warm reservoir, against natural heat flow. It consists of four stages: compression, where work pressurizes low-pressure vapor; condensation, where high-pressure vapor releases heat; expansion, where pressure drops and the refrigerant cools; and evaporation, where low-temperature refrigerant absorbs heat from the cold space.

Question 2

How does the vapor dome relate to refrigerant phase transitions?

Accepted Answer

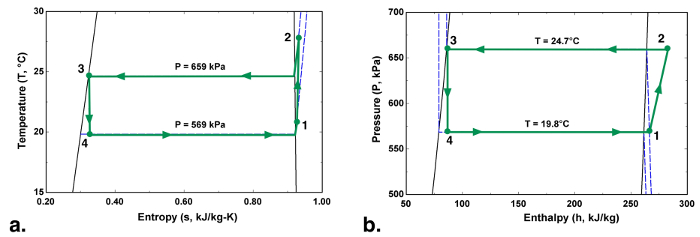

The vapor dome is a region in temperature-entropy and pressure-enthalpy diagrams bounded by saturated liquid and vapor lines. Within this two-phase region, temperature and pressure are dependent—changing pressure automatically adjusts temperature. This property allows refrigeration systems to control the refrigerant's temperature by manipulating pressure, enabling efficient heat transfer during evaporation and condensation stages.

Question 3

What role does the compressor play in a refrigeration system?

Accepted Answer

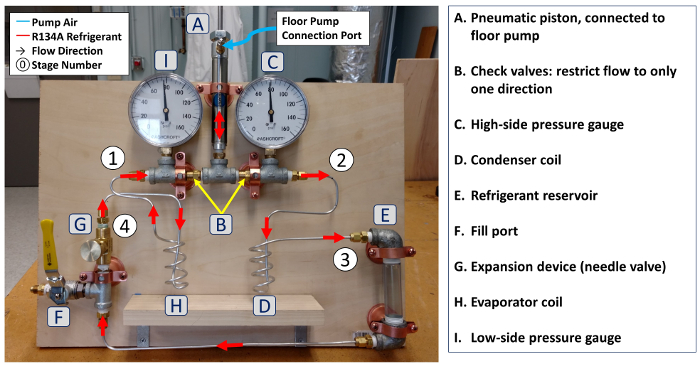

The compressor draws low-pressure vapor from the evaporator and uses mechanical work input to pressurize the refrigerant, raising it to high pressure. This pressurization is essential for the cycle because it enables the refrigerant to condense at higher temperatures in the condenser, allowing heat rejection to the surrounding environment. The compressor essentially drives the entire refrigeration cycle.

Question 4

How is coefficient of performance calculated for a refrigeration system?

Accepted Answer

Coefficient of performance (COP) measures system efficiency by dividing cooling capacity by compressor work input. For example, if an evaporator provides 1.67 kilowatts of cooling and the compressor requires 0.31 kilowatts of work, the COP is 5.4. A higher COP indicates greater efficiency, meaning more cooling is achieved per unit of mechanical work supplied to the system.

Question 5

What happens during the throttling expansion stage in refrigeration?

Accepted Answer

During throttling expansion, high-pressure liquid refrigerant passes through a restriction device and undergoes isentropic expansion. As pressure drops, the refrigerant flashes into a two-phase mixture and its temperature decreases significantly. This cold, low-pressure mixture then enters the evaporator where it absorbs heat from the cold reservoir, completing the cycle's heat acquisition phase.

Question 6

Why is refrigerant charging a two-step process in refrigeration systems?

Accepted Answer

Refrigerant charging requires two steps: evacuation and charging. First, air is removed from the system using a vacuum pump to prevent contamination and ensure proper operation. Then, liquid refrigerant is injected into the system. This two-step approach prevents air pockets and moisture from interfering with heat transfer and thermodynamic performance, ensuring the system operates at design specifications.

Question 7

How can the vapor compression cycle be used as a heat pump?

Accepted Answer

In heat pump mode, the vapor compression cycle reverses its function: the evaporator acquires heat from low-temperature surroundings, and the condenser delivers this heat to a warmer space. This mode is efficient for heating because most delivered heat comes from the environment, with only a small portion supplied as mechanical work to the compressor, making it superior to direct resistance heating.
